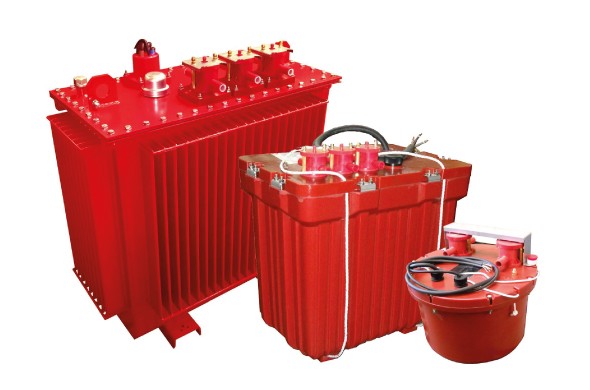

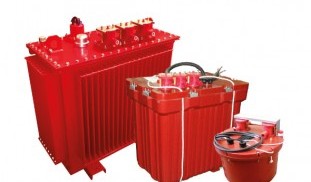

WATERTIGHT TRANSFORMERS TER

FROM 1 TO 160 KVA - 950 V, 3200 V, 5500 V, 6600 V

WATERTIGHT TRANFORMERS TER

Transformers made of Araldite resin up to 32 kVA, and metallic cuve from 50 to 160 kVA Corrosion resistant, water-resistant, disconnectable, can be buried in accessible pits

BENEFITS OF TER TRANSFORMERS

Transformers made of Araldite resin up to 32 kVA, and metallic cuve from 50 to 160 kVA. Corrosion resistant, water-resistant, disconnectable, can be buried in accessible pits

WATER RESISTANT TRANSFORMER
Transformers made of Araldite resin up to 32 kVA
EASY TO CONNECT
T connection on the transformer . One-pole disconnectable terminals, for section cables from 6 to 50 mm²

FEATURES OF TER TRANSFORMERS

Transformers made of Araldite resin up to 32 kVA, and metallic cuve from 50 to 160 kVA. Corrosion resistant, water-resistant, disconnectable, can be buried in accessible pits

PROTECTION GRADE IP 68
PRIMARY VOLTAGE 950 V 3200 V 5500 V 6600 V
PRIMARY INSULATION VOLTAGE 1.1 kV, 3.6 kV, 7.2 kV
SECONDARY NO LOAD VOLTAGE 237 V monophasé, 410 V triphasé + neutre
SECONDARY INSULATION VOLTAGE 1.1 kV
COUPLING single-phase liO or three-phase Yzn11, Dyn 11 from 63 kVA
DIELECTIC oil
COMPLY WITH THE FOLLOWING STANDARDS NF C52-410, IEC 76, ECO DESIGN
