WATERTIGHT TRANSFORMERS TED

3200 V— 5500 V— 6600 V

WATERTIGHT TRANSFORMERS TED

IP68 - Compact substation

BENEFITS OF TED TRANSFORMERS

DOUBLE "AUTO" PROTECTED TRANSFORMERS :

The protection devices directly incorporated in the transformer guarantee MV protetion by easily accessible HRC fuses.

CORROSION RESISTANT, WATERTIGHT, PLUG-IN CONNECTION DESIGNED FOR DIRECTLY BURRIED INSTALLATION.
Cast in resin
EASY TO PLUG-IN AND UNPLUG
COMPLETE RANGE OF EQUIPEMENT
to enable absence of voltage tests (VAT) to be carried out of conform to recommended NF C17-200 standards, available on request

FEATURES OF TED TRANSFORMERS

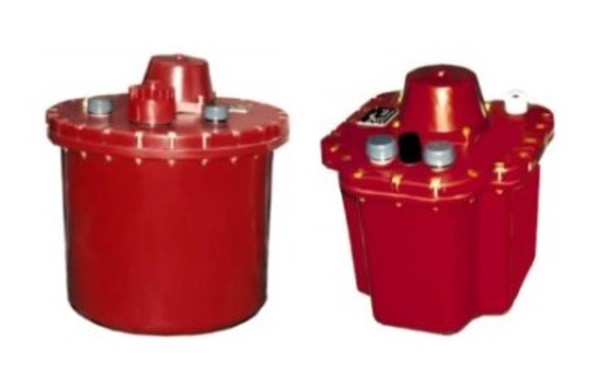

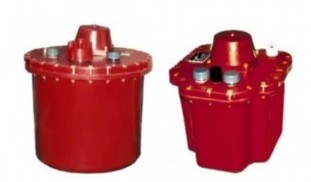

Single-phase transformer for single-phase networks. Cast in resin, corrosion resistant, watertight, plug-in connection designed for directly burried installation.

PROTECTION DEGREE IP68 - IK10
PRIMARY VOLTAGE 3200 V / 5500 V / 6600 V
PRIMARY WINDING INSULATION LEVEL 7,2 kV
SECONDARY NO-LOAD VOLTAGE 237 V
SECONDARY WINDING INSULATION VOLTAGE 1.1 kV
COUPLING single-phase
DIELECTRIC oil
POWER RATING 1000, 2000, 3000, 5000, 10000 VA
NOMINAL POWER DEPENDING ON PUBLIC LIGHTING STANDARDS 800, 1600, 2400, 4000, 8000 VA
TRANSFORMERS COMPLY WITH NF C 52-410 STANDARDS.
