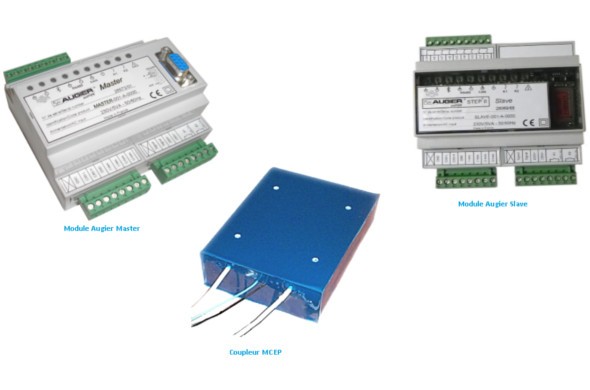

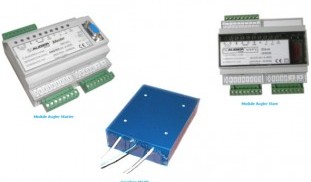

For medium oltage networks STEP® II system allows the remote control and monitoring of equipments installed on a MV network from Augier or equivalent.
BENEFITS OF STEP II
RELIABLE
the system built around Augier-Master® & Augier-Slave® modules benefits of all Augier experiances during several years in road lighting, long distance networks, energy cost savings and airport ground lighting systems.
COMPACT AND EASY TO INSTALL
the box (6 units large) has to be installed on a DIN standard rail. Its pluggable connectors help for an easy installation and maintenance.
VERSATILE
its different inputs / outputs can meet the main needs.
COMMUNICATING
its RS485 serial port can communicate with a remote control system at several kilometers from the monitoring system of the substation.
THE BLUETOOTH COMMUNICATION
allows the configuration and maintenance actions from the PC without physical connection with the selected Augier-Master® or Augier-Slave® module.
FEATURES OF STEP II
COMMUNICATION
Only one AUGIER-master module can communicate with 600 AUGIER-Slave modules.
MV NETWORK
The MV network can be composed up to 255 departures, each departure has the possibility to have 255 derivations.
COMMUNICATION FREQUENCY
133 kHz communication frequency, injection on A and B phases in the case of a three-phase network
TEMPERATURE
Operating temperature from -20°C to +55°C
COMMUNICTAION SPEED AT THE PANEL
140 ms/module For a 10 kilometers network equipped with a network transformer every 300 meters, the communication time will be about 4.3 seconds.
