POSTE MOBILE 600/400 V

200 KVA AND 400 KVA NUCLEAR POWER PLANT APPLICATION

MOBILE STATION 6600/400 V

Connected to the 6.6 kV loop of the central unit, the mobile station allows the transformation of the three-phase voltage 6.6 kV into 400 V neutral output for the supply of materials intended for maintenance operations.




BENEFITS OF MOBILE POSTS

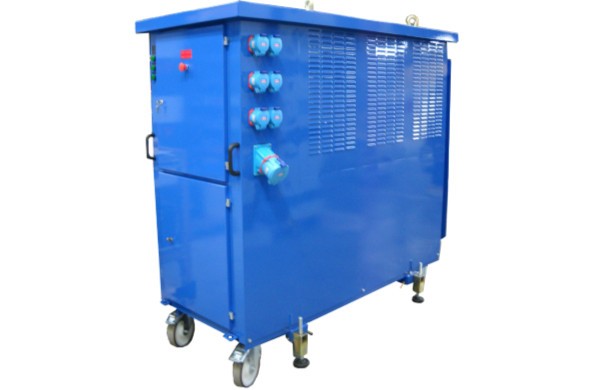

The mobile station is composed of a metal frame protected against corrosion by a layer of anti-rust paint and two layers of decontaminable liquid paint BLEU EDF AFNOR.

  • TO BE CONNECTED TO THE 6.6 KV LOOP for maintenance operations
  • 200 MM DIAMETER CASTERS AND HANDLES FOR EASY MOVEMENT OF THE MOBILE UNIT The large diameter self-locking casters facilitate the movement of the mobile station. Casters with double ball race and wear-resistant polyurethane tread.
  • ANTI-TIP SYSTEM:As standard, four retractable feet, adjustable in height, will stabilize the mobile unit when it is moving.The height of adjustment of the feet between 0 and 50 mm will allow the crossing of the thresholds of door and will authorize the support on the ground of the feet to answer the improvement of the products in term of seismic behavior.
  • LOCKING BY KEY OF THE MAIN CIRCUIT BREAKER
    Locking the main circuit breaker prevents access to the low-voltage cable connection areas for better security.



FEATURES OF MOBILE STATIONS

The mobile unit is equipped with a dry type transformer impregnated with the following technical characteristics:

  • Low loss oriented crystal sheet magnetic circuits ,
  • Copper windings, vacuum impregnated,
  • > Class H impregnation with a finish with the application of a fungicidal varnish,
  • Metal flanges, Mounted in an iron frame specially designed for mounting in the mobile station.
  • Bakelized wooden terminal board .
  • Cooling in natural air: AN
  • Ambient operating temperatures between -15 ° C and + 40 ° C maximum.

The mobile stations are intended to be installed and stored in dry ventilated rooms.

  • PM 200
    Power 200 kVA
    Length (mm) 1907
    Width (mm) 800
    Height (mm) 1769
    Weight (kg) 1230
  • PM 400
    Power 400 kVA
    Length (mm) 2,097
    Width (mm) 860
    Height (mm) 1,919
    Weight (kg) 1,700
  • TRAVEL ASSISTANCE
    2 ergonomic handles
  • FRAME
    4 self-locking casters, diameter 200 mm
  • OUTER CASING
    sheet steel 20/10 mm thick
  • PROTECTION SIGN
    IP 31 - IK07
