3200 V SUBSTATION

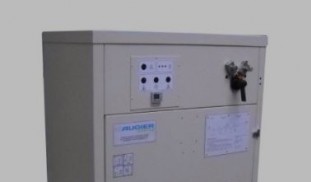

TRANSFORMER SUBSTATION INDOOR PTS32

AUGIER's transformer substation are modularly designed units that guarantee performance. They are available in step-up or step-down models for indoor or outdoor use.




BENEFITS TRANSFORMER SUBSTATION INDOOR PTS32

Made from sheets of painted aluminium, RAL 1015, IP21, bottom-less station, front closed by a door with a three-point handle and a secure lock.

  • IMPREGNATED DRY TYPE TRANSFORMER from 5 to 50 kVA, adjustment taps +- 5%
  • THREE-POSITION CIMALT ISOLATING SWITCH (3200V SIDE), allowing the lines to be sectioned, earthed and measured separately from the input.
  • FOR USE WITH SINGLE-PHASE OR THREE-PHASE NETWORKS
  • NETWORK FUSE PROTECTION 3200 V
  • RONIS LOCK PREVENTING OF THE HIGH-VOLTAG PARTS


FEATURES TRANSFORMER SUBSTATION INDOOR PTS32

Impregnated dry type transformer, from 5 to 50 kVA

  • COUPLING Single-phase or Three-phase
  • TRANSFORMER Impregnated dry type
  • DIMENSIONS SMALL MODEL S
    Lenght (mm) + LV Compartment 1000 + 300
    Depth (mm) 640
    Height (mm) 1230
    Average weight without transformer (kg) 80
  • DIMENSIONS LARGE MODEL XL
    Lenght (mm) + LV COmpartment 1205 + 300
    Depth (mm) 840
    Height (mm) 1506
    Average weight without transformer (kg) 110
