STEP-UP OR STEP-DOWN 950 V

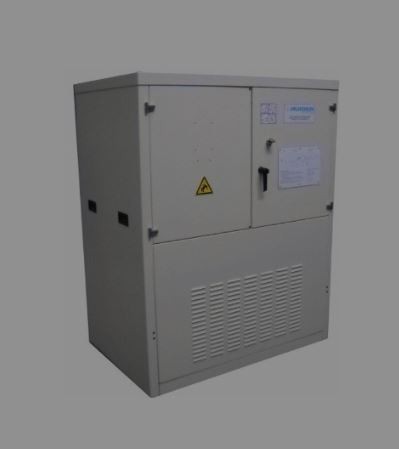

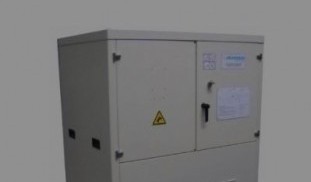

TRANSFORMER SUBSTATIONS OUTDOOR PTS95 EXT

Augier's transformer substations are modularly designed units that guarantee performance. They are available in step-up or step-down models for indoor or outdoor use.




BENEFITS OF TRANSFORMER SUBSTATIONS OUTDOOR PTS95 EXT

Made from sheets of painted aluminium, RAL 1015, IP44, bottom-less station, front closed by a door with a three-point handle.

  • WATERPROOF TRANSFORMER IP68, from 3kVA to 63kVA
  • ADJUSTMENT TAPS +- 5%
  • EQUIPPED ON THE 950V SIDE WITH A THREE-POSITION LOAD BREAK SWITCH, allowing the mains to disconnected and grounded.
  • FOR USE WITH SINGLE-PHASE OR THREE-PHASE NETWORKS
  • NETWORK FUSE PROTECTION 950V, FUSES INCORPORATED IN THE TRANSFORMER



FEATURES OF TRANSFORMER SUBSTATIONS OUTDOOR PTS95 EXT

Waterproof transformer from 3 kVA to 63 kVA

  • COUPLING Single-phase or three-phase
  • DIMENSIONS SMALL MODEL XS
    Lenght (mm) + LV compartment (mm) 750 + 300
    Depth (mm) 600
    Height (mm) 1020
    Average weight without transformer (kg) 65
  • TRANSFORMER
    watertight IP68
  • DIMENSIONS LARGE MODEL XL
    Lenght (mm) + LV compartment (mm) 1205 + 300
    Depth (mm) 845
    Height (mm) 1520
    Average weight without transformer (kg) 1110
