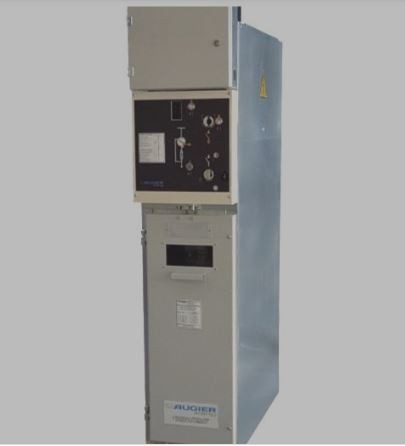

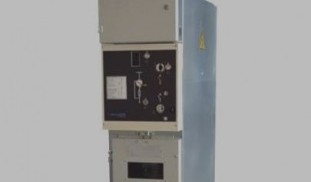

ON-LOAD SWITCH PANEL

7,2 KV CLASS

ON-LOAD SWITCH PANEL
For electrical network 3200V - 5500V - 6600V



BENEFITS OF ON-LOAD SWITCH PANEL

The On-load switch panel protect the electrical lines up to 6.6 kV from the substations.

  • FOR THE PERMANENT ELECTRICAL NETWORKS
    Augier on-load panels are recommended for supplying the permanent Electrical networks 3200V, 5500V, 6600V.
  • REDUCED DIMENSIONS
    Lenght : 375 mm Depth : 840 mm Height : 1670 mm
  • ELECTRICAL PROTECTIONS ADAPTED TO ELECTRICAL NETWORK UP TO 6.6KV
    Protection against short-circuits by means of high rated current fuses. Unbalanced current against earth faults with the help of relay and associated tore.
  • SECURITY: KEY LOCKS

  • DESIGNED FOR COMPACT SUBSTATIONS
    The panels created as a homogeneous tableau


FEATURES OF ON-LOAD SWITCH PANEL

The characteristics are for function temperature between 0°C and +55 °C and for altitude lower than 1000 metres.

  • OPERATING VOLTAGE 7,2 kV Class
  • NOMINAL FREQUENCY 50 Hz / 60 Hz
  • DIELECTIC WITHSTAND 20 kV - 50 Hz - 1 minute
  • NOMINAL CURRENT 300 A
  • TEMPERATURE RESISTANCE 16 kA - 1 second
  • ELECTRODYNAMIC WITHSTAND 40 kA peak
  • LIGHTNING SHOCKS 60 kV
  • SF6 DEVICE FOR BLACKOUT: SIZE 630 A
  • SF6 DEVICE FOR BLACKOUT: POWER OF BLACKOUT 10 kA eff
  • FUSES 7,2kV
