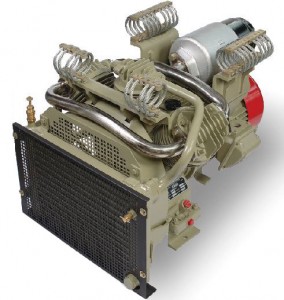

RR 15070
Key Features :
- This is the first ‘W’ shape design air compressor developed for EMU’s and MEMU’s
- Higher output for air spring suspensions and automatic doors
- Under slung mounting design along with wire rope isolators
- Introduced latest innovative design of ‘Hollow rotor shaft’ for motor, which eliminates conventional coupling
|
FEATURES |
|
W-type configuration, three cylinder, two-stage, oil splash lubricated, air-cooled and underslung mounting |
|
TECHNICAL SPECIFICATIONS |
|
|
Free Air Delivery |
1200 lpm (42.37 cfm) |
|
Working Pressure |
8 Kg/cm2 |
|
Overall Dimension (L x B x H) |
958 x 705 x 680mm |
|
Weight |
300 Kg ( Approx.) |
